About the example program🔗

The following example shows how to create an application that uses HALCON Script Engine to load and execute a HSCRIPT document.

C++.NET

You can find the corresponding files of this example in the %HALCONEXAMPLES%\hscriptengine\hscript and %HALCONEXAMPLES%\hscriptengine\cpp directories.

More Info

For information about building the example using CMake , see the %HALCONEXAMPLES%\hscriptengine\cpp\README.md file.

You can find the corresponding files of this example in the %HALCONEXAMPLES%\hscriptengine\hscript and %HALCONEXAMPLES%\hscriptengine\c# directories.

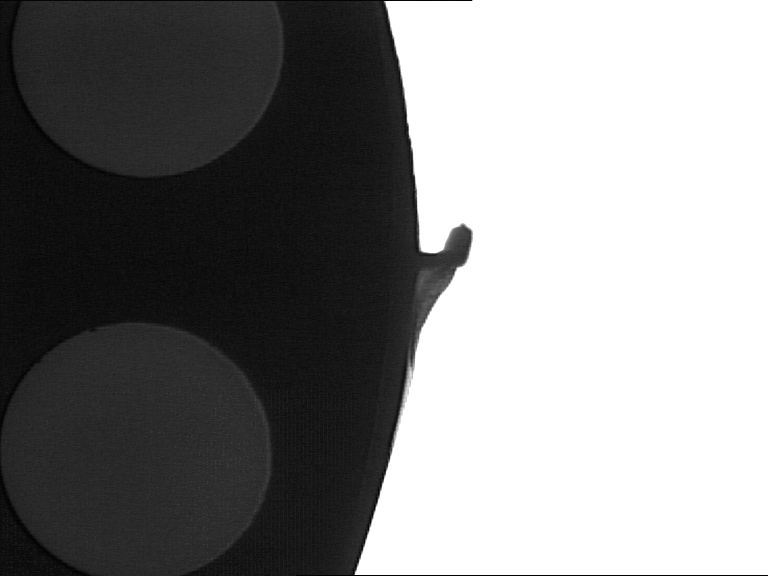

The example loads images from the HALCON images directory (fin1.png to fin3.png; Figure 1). It detects the fins and then displays the images with the fin region highlighted in red (see Figure 2).

The procedures in the HALCON Script file (detect_fin.hscript) do the following:

init loads the images.
detect_fin detects the fins in an image.
display_zoomed_region opens a window showing the respective result.
cleanup closes the window again.

HSCRIPT file

// HALCON Script procedures for fin detection used by HScriptEngine examples

public proc init(out tuple AcqHandle)
  open_framegrabber ('File', 1, 1, 0, 0, 0, 0, 'default', -1, 'default',
                     -1, 'default', 'fin.seq', 'default', -1, -1, AcqHandle)
  grab_image (Image, AcqHandle)
  get_image_pointer1 (Image, Pointer, Type, Width, Height)
  dev_open_window(0, 0, Width, Height, 'black', MainWindow)
endproc

public proc cleanup()
  dev_close_window()
endproc

public proc detect_fin(object Image, out object FinRegion, out tuple FinArea)
  binary_threshold (Image, Dark, 'max_separability', 'dark', UsedThreshold)
  difference (Image, Dark, Background)
  dev_set_color ('blue')
  dev_display (Background)
  closing_circle (Background, ClosedBackground, 250)
  dev_set_color ('green')
  dev_display (ClosedBackground)
  difference (ClosedBackground, Background, RegionDifference)
  opening_rectangle1 (RegionDifference, FinRegion, 5, 5)
  area_center (FinRegion, FinArea, Row, Column)
endproc

public proc display_zoomed_region(object Image, object Region, tuple ZoomScale, tuple Margin)
  area_center (Region, Area, CenterRow, CenterCol)
  smallest_rectangle1 (Region, Row1, Col1, Row2, Col2)
  RegionHeight := Row2 - Row1
  RegionWidth := Col2 - Col1
  Width := (RegionWidth + 2 * Margin) * ZoomScale
  Height := (RegionHeight + 2 * Margin) * ZoomScale
  dev_open_window (CenterRow / 2, CenterCol / 2 + 30, Width, Height, 'black', ZoomWinID)
  dev_set_part (Row1 - Margin, Col1 - Margin, Row2 + Margin, Col2 + Margin)
  dev_display (Image)
  dev_set_color ('red')
  dev_display (Region)
  wait_seconds (3)
  dev_close_window ()
endproc

Important

If you want to use dev_display or similar operators, include dev_open_window first (currently, there is no default window).

C++.NET

This C++ program calls the procedures in detect_fin.hscript using HALCON Script Engine. It also prints the corresponding fin area as numeric result.

C++ file

// HDScriptEngine/C++ example for executing an *.hscript procedure

#include "hscriptenginecpp/HScriptEngine.h"   // (1)!

using namespace HalconCpp;
using namespace HScriptEngineCpp;

static HFramegrabber
InitAcquisitionAndVisualization(const HScriptDocument& doc)
{
  HScriptProcedure     proc = doc.GetProcedure("init");
  HScriptProcedureCall call = proc.CreateCall();

  call.Execute();

  HTuple t_acq_handle = call["AcqHandle"];
  return t_acq_handle.H();
}

static void CleanupScript(const HScriptDocument& doc)
{
  HScriptProcedure     proc = doc.GetProcedure("cleanup");
  HScriptProcedureCall call = proc.CreateCall();

  call.Execute();
}

static HRegion DetectFin(const HScriptDocument& doc, const HImage& image, HTuple& fin_area)
{
  HScriptProcedure     proc = doc.GetProcedure("detect_fin");
  HScriptProcedureCall call = proc.CreateCall();

  call["Image"] = image;

  call.Execute();

  HObject fin_region = call["FinRegion"];
  fin_area           = call["FinArea"];
  return fin_region;
}

static void VisualizeDetails(const HScriptDocument& doc, const HObject& image, const HObject& region)
{
  HScriptProcedure     proc = doc.GetProcedure("display_zoomed_region");
  HScriptProcedureCall call = proc.CreateCall();

  call["Image"]     = image;
  call["Region"]    = region;
  call["ZoomScale"] = 2;
  call["Margin"]    = 5;
  call.Execute();
}

static void Run(void)
{
  try
  {
    // Setup: Locate and load source *.hscript file
    std::string halcon_examples =
        (std::string)HSystem::GetSystem("example_dir")[0].S();

    std::string hscript_file =
        halcon_examples + "/hscriptengine/hscript/detect_fin.hscript";

    HScriptEngine   engine;
    HScriptDocument doc = engine.LoadDocument(hscript_file.c_str());

    // Initialize acquisiton and open main visualization window
    HFramegrabber acq_handle = InitAcquisitionAndVisualization(doc);

    // Main loop: Grab and process 3 images
    for (int i = 0; i < 3; i++)
    {
      HImage  image = acq_handle.GrabImage();
      HTuple  fin_area;
      HRegion fin_region = DetectFin(doc, image, fin_area);

      printf("Iteration %d: Fin Area: %lf\n", i, fin_area.D());

      // Show zoomed defect in separate window
      VisualizeDetails(doc, image, fin_region);
    }

    // Close main window
    CleanupScript(doc);
  }
  catch (const HScriptEngineException& ex)
  {
    printf("HScriptEngine Error: %s\n", ex.GetErrorMessage());
  }
  catch (const HException& ex)
  {
    printf("HALCON Error: %s\n", ex.ErrorMessage().Text());
  }
}

int main(void)
{

  Run();
  return 0;
}

No need to include HalconCpp.h explicitly, as it is included in HScriptEngine.h .

This C# program calls the procedures in detect_fin.hscript using HALCON Script Engine. It also prints the corresponding fin area as numeric result.

C# file

// HDScriptEngine/.NET example for executing an *.hscript procedure

using System;

using HalconDotNet;
using HScriptEngineDotNet;

namespace ExecProcedures
{
  class Program
  {
    static HFramegrabber InitAcquisitionAndVisualization(HScriptDocument doc)
    {
      // Prepare call
      HScriptProcedure proc = doc.GetProcedure("init");
      HScriptProcedureCall call = proc.CreateCall();

      // Execute
      call.Execute();

      // Get output parameter and convert from HTuple to OOP type
      HFramegrabber acq = new HFramegrabber(call["AcqHandle"].T.H);

      // Cleanup native resources deterministically (can also be left to GC)
      call.Dispose();
      proc.Dispose();

      // Return handle
      return acq;
    }

    static void CleanupScript(HScriptDocument doc)
    {
      HScriptProcedure proc = doc.GetProcedure("cleanup");
      HScriptProcedureCall call = proc.CreateCall();

      call.Execute();

      call.Dispose();
      proc.Dispose();
    }

    static HRegion DetectFin(HScriptDocument doc, HImage image, out HTuple fin_area)
    {
      HScriptProcedure proc = doc.GetProcedure("detect_fin");
      HScriptProcedureCall call = proc.CreateCall();

      call["Image"] = image;

      call.Execute();

      HRegion fin_region = new HRegion(call["FinRegion"]);
      fin_area = call["FinArea"];

      call.Dispose();
      proc.Dispose();

      return fin_region;
    }

    static void VisualizeDetails(HScriptDocument doc, HObject image, HObject region)
    {
      HScriptProcedure proc = doc.GetProcedure("display_zoomed_region");
      HScriptProcedureCall call = proc.CreateCall();

      call["Image"].O = image;
      call["Region"].O = region;
      call["ZoomScale"].T = 2;
      call["Margin"].T = 5;

      call.Execute();

      call.Dispose();
      proc.Dispose();
    }

    static void Main(string[] args)
    {
      try
      {
        // Setup: Locate and load source *.hscript file
        string halcon_examples = HSystem.GetSystem("example_dir")[0].S;

        string hscript_file =
            halcon_examples + "/hscriptengine/hscript/detect_fin.hscript";

        HScriptEngine engine = new HScriptEngine();
        HScriptDocument doc = engine.LoadDocument(hscript_file);

        // Initialize acquisition and open main visualization window
        HFramegrabber acq_handle = InitAcquisitionAndVisualization(doc);

        // Main loop: Grab and process 3 images
        for (int i = 0; i < 3; i++)
        {
          HImage image = acq_handle.GrabImage();
          HTuple fin_area;
          HRegion fin_region = DetectFin(doc, image, out fin_area);

          Console.WriteLine("Iteration {0:D}: Fin Area: {1:F}\n", i, fin_area.D);

          // Show zoomed defect in separate window
          VisualizeDetails(doc, image, fin_region);

          image.Dispose();
          fin_region.Dispose();
        }

        // Close main window
        CleanupScript(doc);

        acq_handle.Dispose();
        doc.Dispose();
        engine.Dispose();
      }
      catch (HScriptEngineException ex)
      {
        Console.WriteLine("HScriptEngine Error: {0}", ex.GetErrorMessage());
      }
      catch (HalconException ex)
      {
        Console.WriteLine("HALCON Error: {0}", ex.GetErrorMessage());
      }

      // On Windows, HALCON cannot automatically return floating licenses, so
      // explicitly return the license in a ProcessExit event handler.
      HOperatorSet.SetSystem("return_license", "true");
    }
  }
}
